Hosting Our Static Site over SSL with S3, ACM, CloudFront and Terraform

INFO

This post was originally written on March 4, 2018

Original post: https://medium.com/runatlantis/hosting-our-static-site-over-ssl-with-s3-acm-cloudfront-and-terraform-513b799aec0f

In this post I cover how I hosted <www.runatlantis.io> using

S3 — for storing the static site
CloudFront — for serving the static site over SSL
AWS Certificate Manager — for generating the SSL certificates
Route53 — for routing the domain name <www.runatlantis.io> to the correct location

I chose Terraform in this case because Atlantis is a tool for automating and collaborating on Terraform in a team (see github.com/runatlantis/atlantis)–and so obviously it made sense to host our homepage using Terraform–but also because it's now much easier to manage. I don't have to go into the AWS console and click around to find what settings I want to change. Instead I can just look at ~100 lines of code, make a change, and run terraform apply.

INFO

NOTE: 4 months after this writing, I moved the site to Netlify because it automatically builds from my master branch on any change, updates faster since I don't need to wait for the Cloudfront cache to expire and gives me deploy previews of changes. The DNS records are still hosted on AWS.

Overview

There's a surprising number of components required to get all this working so I'm going to start with an overview of what they're all needed for. Here's what the final architecture looks like:

That's what the final product looks like, but lets start with the steps required to get there.

Step 1 — Generate The Site

The first step is to have a site generated. Our site uses Hugo, a Golang site generator. Once it's set up, you just need to run hugo and it will generate a directory with HTML and all your content ready to host.

Step 2 — Host The Content

Once you've got a website, you need it to be accessible on the internet. I used S3 for this because it's dirt cheap and it integrates well with all the other necessary components. I simply upload my website folder to the S3 bucket.

Step 3 — Generate an SSL Certificate

I needed to generate an SSL certificate for https://www.runatlantis.io. I used the AWS Certificate Manager for this because it's free and is easily integrated with the rest of the system.

Step 4 — Set up DNS

Because I'm going to host the site on AWS services, I need requests to <www.runatlantis.io> to be routed to those services. Route53 is the obvious solution.

Step 5 — Host with CloudFront

At this point, we've generated an SSL certificate for <www.runatlantis.io> and our website is available on the internet via its S3 url so can't we just CNAME to the S3 bucket and call it a day? Unfortunately not.

Since we generated our own certificate, we would need S3 to sign its responses using our certificiate. S3 doesn't support this and thus we need CloudFront. CloudFront supports using our own SSL cert and will just pull its data from the S3 bucket.

Terraform Time

Now that we know what our architecture should look like, it's simply a matter of writing the Terraform.

Initial Setup

Create a new file main.tf:

// This block tells Terraform that we're going to provision AWS resources.
provider "aws" {
  region = "us-east-1"
}

// Create a variable for our domain name because we'll be using it a lot.
variable "www_domain_name" {
  default = "www.runatlantis.io"
}

// We'll also need the root domain (also known as zone apex or naked domain).
variable "root_domain_name" {
  default = "runatlantis.io"
}

S3 Bucket

Assuming we've generated our site content already, we need to create an S3 bucket to host the content.

resource "aws_s3_bucket" "www" {
  // Our bucket's name is going to be the same as our site's domain name.
  bucket = "${var.www_domain_name}"
  // Because we want our site to be available on the internet, we set this so
  // anyone can read this bucket.
  acl    = "public-read"
  // We also need to create a policy that allows anyone to view the content.
  // This is basically duplicating what we did in the ACL but it's required by
  // AWS. This post: http://amzn.to/2Fa04ul explains why.
  policy = <<POLICY
{
  "Version":"2012-10-17",
  "Statement":[
    {
      "Sid":"AddPerm",
      "Effect":"Allow",
      "Principal": "*",
      "Action":["s3:GetObject"],
      "Resource":["arn:aws:s3:::${var.www_domain_name}/*"]
    }
  ]
}
POLICY

  // S3 understands what it means to host a website.
  website {
    // Here we tell S3 what to use when a request comes in to the root
    // ex. https://www.runatlantis.io
    index_document = "index.html"
    // The page to serve up if a request results in an error or a non-existing
    // page.
    error_document = "404.html"
  }
}

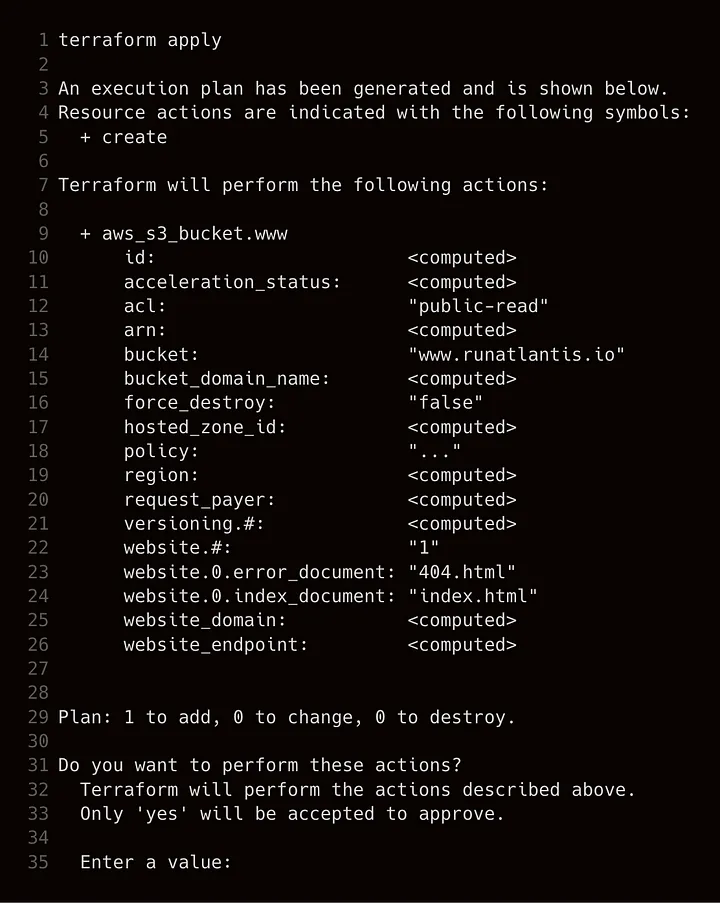

We should be able to run Terraform now to create the S3 bucket

terraform init
`terraform apply`

Now we want to upload our content to the S3 bucket:

$ cd dir/with/website
# generate the HTML
$ hugo -d generated
$ cd generated
# send it to our S3 bucket
$ aws s3 sync . s3://www.runatlantis.io/ # change this to your bucket

Now we need the S3 url to see our content:

$ terraform state show aws_s3_bucket.www | grep website_endpoint
website_endpoint                       = www.runatlantis.io.s3-website-us-east-1.amazonaws.com

You should see your site hosted at that url!

SSL Certificate

Let's use the AWS Certificate Manager to create our SSL certificate.

// Use the AWS Certificate Manager to create an SSL cert for our domain.
// This resource won't be created until you receive the email verifying you
// own the domain and you click on the confirmation link.
resource "aws_acm_certificate" "certificate" {
  // We want a wildcard cert so we can host subdomains later.
  domain_name       = "*.${var.root_domain_name}"
  validation_method = "EMAIL"

  // We also want the cert to be valid for the root domain even though we'll be
  // redirecting to the www. domain immediately.
  subject_alternative_names = ["${var.root_domain_name}"]
}

Before you run terraform apply, ensure you're forwarding any of

administrator@your_domain_name
hostmaster@your_domain_name
postmaster@your_domain_name
webmaster@your_domain_name
admin@your_domain_name

To an email address you can access. Then, run terraform apply and you should get an email from AWS to confirm you own this domain where you'll need to click on the link.

CloudFront

Now we're ready for CloudFront to host our website using the S3 bucket for the content and using our SSL certificate. Warning! There's a lot of code ahead but most of it is just defaults.

resource "aws_cloudfront_distribution" "www_distribution" {
  // origin is where CloudFront gets its content from.
  origin {
    // We need to set up a "custom" origin because otherwise CloudFront won't
    // redirect traffic from the root domain to the www domain, that is from
    // runatlantis.io to www.runatlantis.io.
    custom_origin_config {
      // These are all the defaults.
      http_port              = "80"
      https_port             = "443"
      origin_protocol_policy = "http-only"
      origin_ssl_protocols   = ["TLSv1", "TLSv1.1", "TLSv1.2"]
    }

    // Here we're using our S3 bucket's URL!
    domain_name = "${aws_s3_bucket.www.website_endpoint}"
    // This can be any name to identify this origin.
    origin_id   = "${var.www_domain_name}"
  }

  enabled             = true
  default_root_object = "index.html"

  // All values are defaults from the AWS console.
  default_cache_behavior {
    viewer_protocol_policy = "redirect-to-https"
    compress               = true
    allowed_methods        = ["GET", "HEAD"]
    cached_methods         = ["GET", "HEAD"]
    // This needs to match the `origin_id` above.
    target_origin_id       = "${var.www_domain_name}"
    min_ttl                = 0
    default_ttl            = 86400
    max_ttl                = 31536000

    forwarded_values {
      query_string = false
      cookies {
        forward = "none"
      }
    }
  }

  // Here we're ensuring we can hit this distribution using www.runatlantis.io
  // rather than the domain name CloudFront gives us.
  aliases = ["${var.www_domain_name}"]

  restrictions {
    geo_restriction {
      restriction_type = "none"
    }
  }

  // Here's where our certificate is loaded in!
  viewer_certificate {
    acm_certificate_arn = "${aws_acm_certificate.certificate.arn}"
    ssl_support_method  = "sni-only"
  }
}

Apply the changes with terraform apply and then find the domain name that CloudFront gives us:

$ terraform state show aws_cloudfront_distribution.www_distribution | grep ^domain_name
domain_name                                                                                          = d1l8j8yicxhafq.cloudfront.net

You'll probably get an error if you go to that URL right away. You need to wait a couple minutes for CloudFront to set itself up. It took me 10 minutes. You can view its progress in the console: https://console.aws.amazon.com/cloudfront/home

DNS

We're almost done! We've got CloudFront hosting our site, now we need to point our DNS at it.

// We want AWS to host our zone so its nameservers can point to our CloudFront
// distribution.
resource "aws_route53_zone" "zone" {
  name = "${var.root_domain_name}"
}

// This Route53 record will point at our CloudFront distribution.
resource "aws_route53_record" "www" {
  zone_id = "${aws_route53_zone.zone.zone_id}"
  name    = "${var.www_domain_name}"
  type    = "A"

  alias = {
    name                   = "${aws_cloudfront_distribution.www_distribution.domain_name}"
    zone_id                = "${aws_cloudfront_distribution.www_distribution.hosted_zone_id}"
    evaluate_target_health = false
  }
}

If you bought your domain from somewhere else like Namecheap, you'll need to point your DNS at the nameservers listed in the state for the Route53 zone you created. First terraform apply (which may take a while), then find out your nameservers.

$ terraform state show aws_route53_zone.zone
id             = Z2FNAJGFW912JG
comment        = Managed by Terraform
force_destroy  = false
name           = runatlantis.io
name_servers.# = 4
name_servers.0 = ns-1349.awsdns-40.org
name_servers.1 = ns-1604.awsdns-08.co.uk
name_servers.2 = ns-412.awsdns-51.com
name_servers.3 = ns-938.awsdns-53.net
tags.%         = 0
zone_id        = Z2FNAJGFW912JG

Then look at your domain's docs for how to change your nameservers to all 4 listed.

That's it...?

Once the DNS propagates you should see your site at https://www.yourdomain! But what about https://yourdomain? i.e. without the www.? Shouldn't this redirect to https://www.yourdomain?

Root Domain

It turns out, we need to create a whole new S3 bucket, CloudFront distribution and Route53 record just to get this to happen. That's because although S3 can serve up a redirect to the www version of your site, it can't host SSL certs and so you need CloudFront. I've included all the terraform necessary for that below.

Congrats! You're done!

If you're using Terraform in a team, check out Atlantis: https://github.com/runatlantis/atlantis for automation and collaboration to make your team happier!

Here's the Terraform needed to redirect your root domain:

resource "aws_s3_bucket" "root" {
  bucket = "${var.root_domain_name}"
  acl    = "public-read"
  policy = <<POLICY
{
  "Version":"2012-10-17",
  "Statement":[
    {
      "Sid":"AddPerm",
      "Effect":"Allow",
      "Principal": "*",
      "Action":["s3:GetObject"],
      "Resource":["arn:aws:s3:::${var.root_domain_name}/*"]
    }
  ]
}
POLICY

  website {
    // Note this redirect. Here's where the magic happens.
    redirect_all_requests_to = "https://${var.www_domain_name}"
  }
}

resource "aws_cloudfront_distribution" "root_distribution" {
  origin {
    custom_origin_config {
      http_port              = "80"
      https_port             = "443"
      origin_protocol_policy = "http-only"
      origin_ssl_protocols   = ["TLSv1", "TLSv1.1", "TLSv1.2"]
    }
    domain_name = "${aws_s3_bucket.root.website_endpoint}"
    origin_id   = "${var.root_domain_name}"
  }

  enabled             = true
  default_root_object = "index.html"

  default_cache_behavior {
    viewer_protocol_policy = "redirect-to-https"
    compress               = true
    allowed_methods        = ["GET", "HEAD"]
    cached_methods         = ["GET", "HEAD"]
    target_origin_id       = "${var.root_domain_name}"
    min_ttl                = 0
    default_ttl            = 86400
    max_ttl                = 31536000

    forwarded_values {
      query_string = false
      cookies {
        forward = "none"
      }
    }
  }

  aliases = ["${var.root_domain_name}"]

  restrictions {
    geo_restriction {
      restriction_type = "none"
    }
  }

  viewer_certificate {
    acm_certificate_arn = "${aws_acm_certificate.certificate.arn}"
    ssl_support_method  = "sni-only"
  }
}

resource "aws_route53_record" "root" {
  zone_id = "${aws_route53_zone.zone.zone_id}"

  // NOTE: name is blank here.
  name = ""
  type = "A"

  alias = {
    name                   = "${aws_cloudfront_distribution.root_distribution.domain_name}"
    zone_id                = "${aws_cloudfront_distribution.root_distribution.hosted_zone_id}"
    evaluate_target_health = false
  }
}
